Tus txiv neej BSP Metric 60 Lub Ncauj Quav khi Seal

Tus txiv neej BSP Metric 60 Lub Ncauj Quav khi Seal

Txiv neej BSP Metric 60 cone bonded seal BSP fittings catalog yog popluare hauv UK, Ireland, Canada, Asmeskas thiab lwm yam BSP 60 cone fittings tau piav qhia los ntawm BS5200 sib npaug nrog ISO 8434-6 tus qauv. Qhov loj me ntawm BSPP xov kab ntawv loj yog G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 thiab lwm yam BSP ...
Xa kev nug
1BM BSP MALE
Tsham tam sim no
Hauj lwm lawm

Txiv neej BSP Metric 60 cone bonded seal

BSP fittings catalog yog popluare hauv UK, Ireland, Canada, Asmeskas thiab lwm yam.

Txhua BSP 60 cone fittings tau piav qhia los ntawm BS5200 sib npaug nrog ISO 8434-6 tus qauv.

Qhov loj me ntawm BSPP xov kab ntawv loj yog G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 thiab lwm yam.

BSP yog british txheem yeeb nkab nrog 55 degree xov.

BSPP xov yog raws li ISO 228 thiab AS 1722.2 cov qauv.

BSP hydraulic fittings uk identification kit (2)

BSPP xov qhia rau ntau yam kev sib khi xws li BSPP 60 ° lub rooj rau lub tog raj txuas, BSPP chaw nres nkoj nrog cov sib khi, BSPP chaw nres nkoj nrog ED foob, BSPP oring + khaws lub nplhaib G hom, BSPP o-ntiv nplhaib kho kom zoo sael H hom, BSPP txiav ntsej muag foob Hom B.

BSPP cov yeeb nkab haum rau cov khoom siv rau ntau xaus xws li BSPT txiv neej, ORFS txiv neej, Metric ISO 6149-3 stud, JIC txiv neej 74 khob, Komatsu metric 60 cone, NPT txiv neej, SAE ORB ISO 11926-3 fittings, taub-weld raj, JIC poj niam 37cone, ORFS poj niam thiab lwm yam.

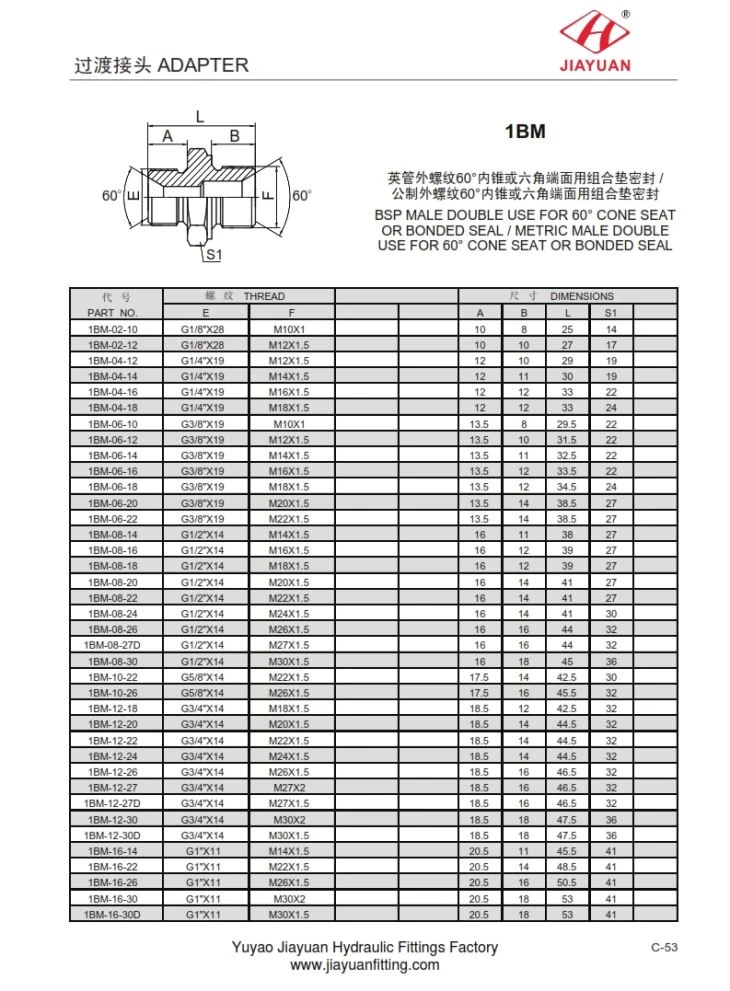

1BM BSP MALE COJ SIV RAU 60 ° CONE LUB CAIJ LOSSIS THOOB DAWB / HLAU MALE MALE COJ SIV RAU 60 ° CONE LUB CAIJ LOSSIS THAUM NTSUAS PHOM Qhov loj me raws li daim ntawv qhia raws li:



PAJ RT   N O.

T HR EA D

DIM E N S I O NS

E

F

A

B

L

S 1


1 B M - 02 - 10

G 1/8 " X 28

M10 X 1

10

8. 8

25. 25

14 14


1 B M - 02 - 12

G 1/8 " X 28

M12 X 1.5

10

10

27. Muaj 27 leej

17


1 B M - 04 - 12

G 1/4 " X 19

M12 X 1.5

12. 12s

10

29. 29

19


1 B M - 04 - 14

G 1/4 " X 19

M14 X 1.5

12. 12s

11. 11

30. 30

19


1 B M - 04 - 16

G 1/4 " X 19

M16 X 1.5

12. 12s

12. 12s

33

22


1 B M - 04 - 18

G 1/4 " X 19

M18 X 1.5

12. 12s

12. 12s

33

24


1 B M - 06 - 10

G 3/8 " X 19

M10 X 1

13,5

8. 8

29,5

22


1 B M - 06 - 12

G 3/8 " X 19

M12 X 1.5

13,5

10

31,5

22


1 B M - 06 - 14

G 3/8 " X 19

M14 X 1.5

13,5

11. 11

32,5

22


1 B M - 06 - 16

G 3/8 " X 19

M16 X 1.5

13,5

12. 12s

33,5

22


1 B M - 06 - 18

G 3/8 " X 19

M18 X 1.5

13,5

12. 12s

34,5

24


1 B M - 06 - 20

G 3/8 " X 19

M20 X 1.5

13,5

14 14

38,5

27. Muaj 27 leej


1 B M - 06 - 22

G 3/8 " X 19

M22 X 1.5

13,5

14 14

38,5

27. Muaj 27 leej


1 B M - 08 - 14

G 1/2 " X 14

M14 X 1.5

16

11. 11

38

27. Muaj 27 leej


1 B M - 08 - 16

G 1/2 " X 14

M16 X 1.5

16

12. 12s

39

27. Muaj 27 leej


1 B M - 08 - 18

G 1/2 " X 14

M18 X 1.5

16

12. 12s

39

27. Muaj 27 leej


1 B M - 08 - 20

G 1/2 " X 14

M20 X 1.5

16

14 14

41

27. Muaj 27 leej


1 B M - 08 - 22

G 1/2 " X 14

M22 X 1.5

16

14 14

41

27. Muaj 27 leej


1 B M - 08 - 24

G 1/2 " X 14

M24 X 1.5

16

14 14

41

30. 30


1 B M - 08 - 26

G 1/2 " X 14

M26 X 1.5

16

16

44

32. 32


1 B M - 08 - 27D

G 1/2 " X 14

M27 X 1.5

16

16

44

32. 32


1 B M - 08 - 30

G 1/2 " X 14

M30 X 1.5

16

18 18

45

36


1 B M - 10 - 22

G 5/8 " X 14

M22 X 1.5

17,5

14 14

42,5

30. 30


1 B M - 10 - 26

G 5/8 " X 14

M26 X 1.5

17,5

16

45,5

32. 32


1 B M - 12 - 18

G 3/4 " X 14

M18 X 1.5

18,5

12. 12s

42,5

32. 32


1 B M - 12 - 20

G 3/4 " X 14

M20 X 1.5

18,5

14 14

44,5

32. 32


1 B M - 12 - 22

G 3/4 " X 14

M22 X 1.5

18,5

14 14

44,5

32. 32


1 B M - 12 - 24

G 3/4 " X 14

M24 X 1.5

18,5

14 14

44,5

32. 32


1 B M - 12 - 26

G 3/4 " X 14

M26 X 1.5

18,5

16

46,5

32. 32


1 B M - 12 - 27

G 3/4 " X 14

M27 X 2

18,5

16

46,5

32. 32


1 B M - 12 - 27D

G 3/4 " X 14

M27 X 1.5

18,5

16

46,5

32. 32


1 B M - 12 - 30

G 3/4 " X 14

M30 X 2

18,5

18 18

47,5

36


1 B M - 12 - 30D

G 3/4 " X 14

M30 X 1.5

18,5

18 18

47,5

36


1 B M - 16 - 14

G 1 " X 11

M14 X 1.5

20,5

11. 11

45,5

41


1 B M - 16 - 22

G 1 " X 11

M22 X 1.5

20,5

14 14

48,5

41


1 B M - 16 - 26

G 1 " X 11

M26 X 1.5

20,5

16

50,5

41


1 B M - 16 - 30

G 1 " X 11

M30 X 2

20,5

18 18

53

41


1 B M - 16 - 30D

G 1 " X 11

M30 X 1.5

20,5

18 18

53

41



Cim npe nrov: txiv neej bsp metric 60 cone bonded seal, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, kev cai, tooj dag, swagelok, Parker, Stauff, Brennan, stainless hlau
