Cov Hom Khoom: Metric Bite Hom Tube Fittings- Lub raj rau lub tshuab txuas rau
Kev Lag Luam Cov Qauv: DIN 2353
Kev Txuas Lus E rau F style: 24 ° cone kawg rau Bulkhead
Cov Qauv: Luj Tshib, 90 degree luj tshib, thiab lwm yam.
Ua haujlwm siab: 16-63 Mpa
Cov Khoom Siv Fittings: tooj dag; Cov hlau; Stainless Hlau
Daim ntawv thov: Cov khoom siv ua liaj ua teb, tsheb txheej txheem, kev hloov tshuaj, Siv khoom siv, hloov roj, Hydraulic, tsim khoom siv, tubrog nkoj, Siv cov khoom siv, Khoom siv txawb, Oilfield, ntim, Tsheb thauj mus los

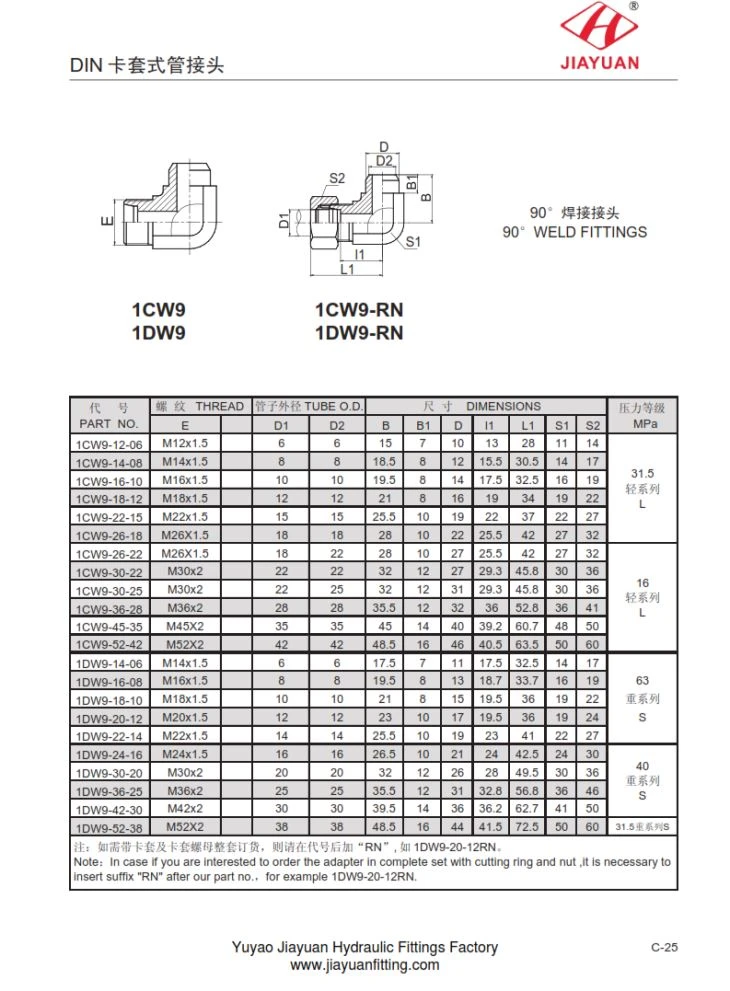

1CW9 1DW9-RN weld leeg fittings DIN2353 Qhov loj me Qhov loj ntawm cov lus qhia raws li hauv qab no
TSHOOJ NO. XOV TUBE OD
E D1 D2
1CW9-12-06 M12x1.5 6 6
1CW9-14-08 M14x1.5 8 8
1CW9-16-10 M16x1.5 10 10
1CW9-18-12 M18x1.5 12 12
1CW9-22-15 M22x1.5 15 15
1CW9-26-18 M26X1.5 18 18
1CW9-26-22 M26X1.5 18 22
1CW9-30-22 M30x2 22 22
1CW9-30-25 M30x2 22 25
1CW9-36-28 M36x2 28 28
1CW9-45-35 M45X2 35 35
1CW9-52-42 M52X2 42 42
1DW9-14-06 M14x1.5 6 6
1DW9-16-08 M16x1.5 8 8
1DW9-18-10 M18x1.5 10 10
1DW9-20-12 M20x1.5 12 12
1DW9-22-14 M22x1.5 14 14
1DW9-24-16 M24x1.5 16 16
1DW9-30-20 M30x2 20 20
1DW9-36-25 M36x2 25 25
1DW9-42-30 M42x2 30 30
1DW9-52-38 M52X2 38 38
Cim npe nrov: Metric txiv neej weld luj tshib raj fittings, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, kev cai, tooj dag, swagelok, Parker, Stauff, Brennan, stainless hlau
