BSP yeeb fittings qhov ntev thiab catalog yog tib yam los ntawm cov neeg muab khoom sib txawv.
Cov Khoom Siv Cov hom ntawm cov yeeb nkab fittings xws li steel hlau, tooj dag thiab yas.
UK thiab Asmeskas BSPP xov yeeb nkab fittings thov hauv kev ntsuas cov yeeb nkab fittings thiab cov yeeb nkab fittings.
BSP yeeb nkab ftting hloov khoom siv rau lub qhov (socket) weld, NPT txiv neej, SAE ORB, BSPT txiv neej, ORFS txiv neej, DIN 2353 raj txuas, metric o-ring thiab lwm yam.
Cov duab ntawm BSPP cov yeeb nkab adapter xws li ncaj, Luj tshib, Tee, Hla, Daj Rov Qab.
Peb tseem tuaj yeem muab li 2 nti bsp fittings.

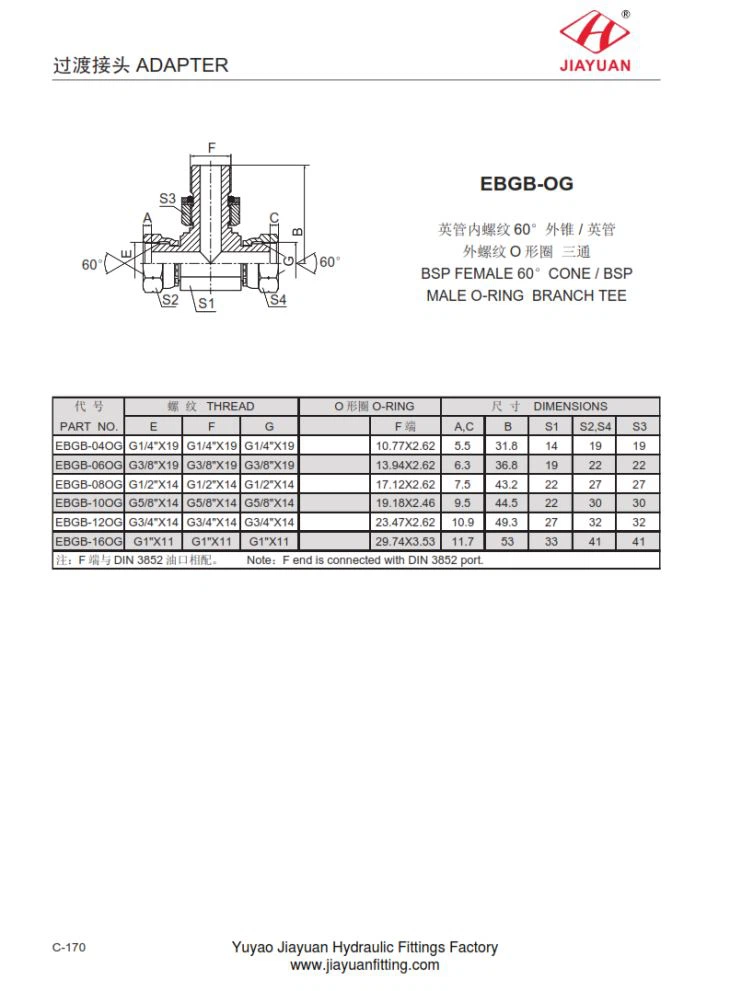

EBGB-OG BSP FEMALE 60 ° CONE / BSP MALE O-RING BRANCH TEE yeeb nkab txuas loj raws li daim ntawv qhia:
NTU TSIS MUAJ. | NKAWV | O-RING | YAM | |||||||
E | F | G | F | A, C | B | S1 | S2, S4 | S3 | ||
EBGB-04OG | G1 / 4 "X19 | G1 / 4 "X19 | G1 / 4 "X19 | 10.77X2.62 | 5.5 | 31,8 | 14 14 | 19 | 19 | |
EBGB-06OG | G3 / 8 "X19 | G3 / 8 "X19 | G3 / 8 "X19 | 13.94X2.62 | 6.3 | 36,8 | 19 | 22 | 22 | |
EBGB-08OG | G1 / 2 "X14 | G1 / 2 "X14 | G1 / 2 "X14 | 17.12X2.62 | 7,5 | 43.2 | 22 | 27. Muaj 27 leej | 27. Muaj 27 leej | |
EBGB-10OG | G5 / 8 "X14 | G5 / 8 "X14 | G5 / 8 "X14 | 19.18X2.46 | 9,5 | 44,5 | 22 | 30. 30 | 30. 30 | |
EBGB-12OG | G3 / 4 "X14 | G3 / 4 "X14 | G3 / 4 "X14 | 23.47X2.62 | 10,9 | 49.3 | 27. Muaj 27 leej | 32. 32 | 32. 32 | |
EBGB-16OG | G1 "X11 | G1 "X11 | G1 "X11 | 29.74X3.53 | 11,7 | 53 | 33 | 41 | 41 | |
F DIN 3852 F kawg yog c N l o n t n ected nrog DIN 3852 chaw nres nkoj. | ||||||||||
