1. Kev txhais ntawm Split Flange Clamps, SAE J518 txhais cov plaub lub ntsej muag phua flange ib nrab, kuj yuav sib npaug rau BS ISO 6162-1 / 2: 2012 version, nws yog ib tug faisged flanged tube, yeeb nkab, hose kev twb kev txuas. Flange txuas nrog clamps muaj ob hom: split flange thiab ib-flange clamps.
SAE J618 code 61 thiab ISO 6162-1 txhais cov Flange connectors, ports thiab mounting surfaces rau siv ntawm kev sib luag ntawm 3,5 MPa (35 bar) rau 35 MPa (350 bar), DN 13 mus DN 127.
SAE J618 code 62 thiab ISO 6162-2 txhais cov Flange connectors, ports thiab mounting cov chaw siv rau ntawm siab ntawm 42 MPa (420 bar), DN 13 mus DN 76.

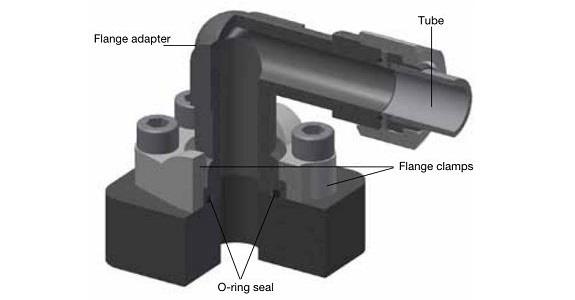

2. Kev Tawm Ntawm SAE Split Flange Clamps sib dhos, nws yog qhov kev sib txuas ntawm qhov chaw nres nkoj ntawm 4-blots los ntawm kev sib tshuam flanged hau, cais flange clamps (FCS thiab FCSM) los yog ib daim flange clamps (FC thiab FCM), ports thiab mounting surfaces siv rau plaub ntsia hlau, cais thiab ib qho flange clamp hom tube connectors thiab hose fittings.
 |  |
 |
3. Dimension ntawm SAE Flange Lub taub hau rau Mating SAE Flange Clamps
Flange Lub taub hau loj li ib lub ISO 6162-1
Flange Lub taub hau loj li ib lub ISO 6162-2
4. Cug ntsaum qhov ntau thiab tsawg ntawm kev sib tsoo flange txuas nrog ISO 6162
Dimensions, O-Ring, bolt, torques thiab siab tshaj ua haujlwm, thov hu rau peb.
ISO 6162-1
ISO 6162-2

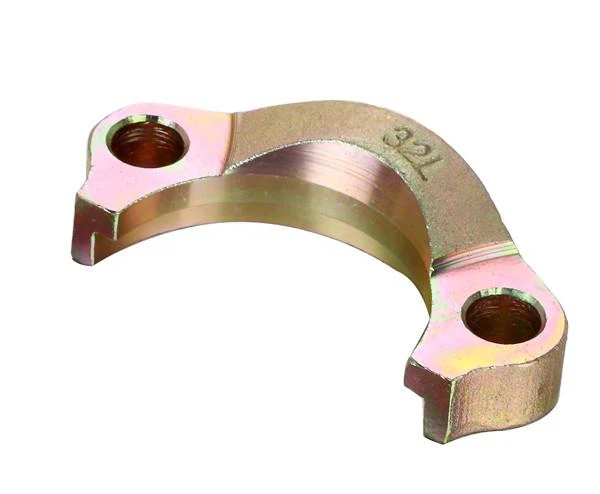

1. Split Flange Clamps code 61/62 FL / FS
Yog tias koj xav tau nti hno, thov qhia rau peb.
