Cov Hom Khoom: Hydraulic Flange SAE adapter fittings 1BFL9 Luj Tshib
Kev Lag Luam Cov Qauv: SAE J518, ISO 6162, BS5200, ISO 8434-6,
Kev Txuas Lus E rau F style: 90 ° BSP MALE 60 ° CONE DAIM / SAE FLANGE 3000PSI Daim Duab: Luj tshib, ncaj, thaiv thiab lwm yam.
Kev ntsuas ua haujlwm siab: SAE code 61 yog 2.5 txog 31.5 Mpa; SAE code 62 yog 40 Mpa.
Cov Ntaus Khoom Siv: tooj dag; Cov hlau; Stainless Hlau
Daim ntawv thov: Cov khoom siv ua liaj ua teb, tsheb txheej txheem, kev hloov tshuaj, Siv khoom siv, hloov roj, Hydraulic, tsim khoom siv, tubrog nkoj, Siv cov khoom siv, Khoom siv txawb, Oilfield, ntim, Tsheb thauj mus los

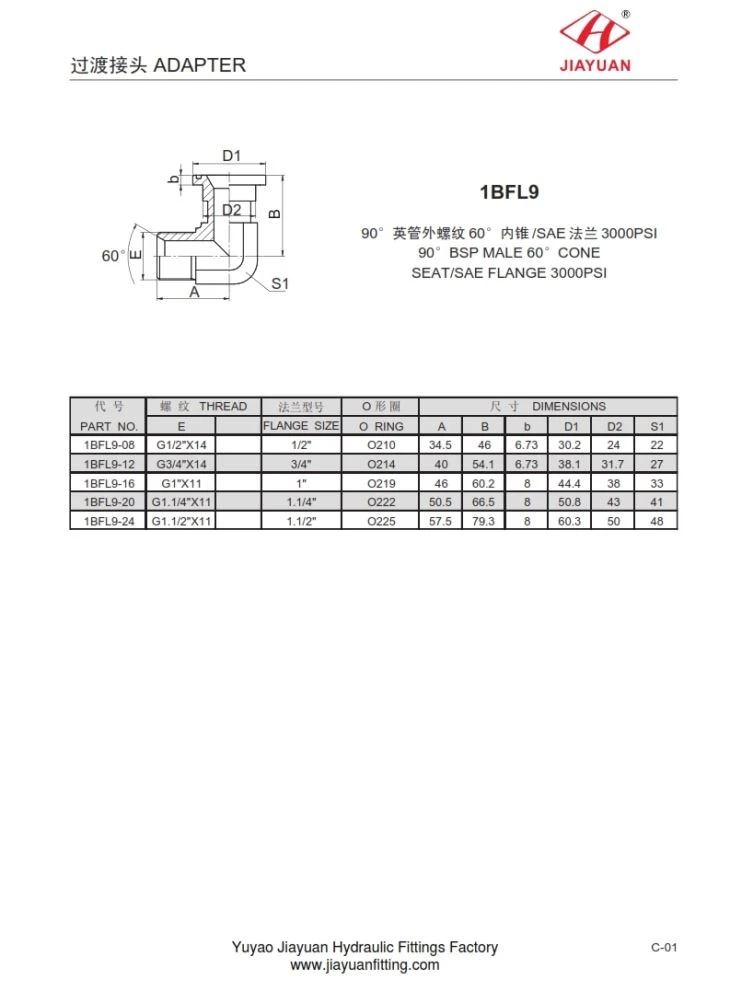

1BFL9 Luj tshib BSP 60 SAE flange 3000 adapter J518 ISO 6162 Qhov Loj Qhov loj me Cov lus qhia raws li hauv qab no
NTU TSIS MUAJ. | NKAWV | O | YAM | |||||||
E | FLANGE SIZE | O XOOG | A | B | b | D1 | D2 | S1 | ||
1BFL9-08 | G1 / 2 "X14 | 1/2 " | O210 | 34,5 | 46 | 6.73 | 30.2 | 24 | 22 | |
1BFL9-12 | G3 / 4 "X14 | 3/4 " | O214 | 40 | 54.1 | 6.73 | 38.1 | 31,7 | 27. Muaj 27 leej | |
1BFL9-16 | G1 "X11 | 1 " | O219 | 46 | 60.2 | 8. 8 | 44.4 | 38 | 33 | |
1BFL9-20 | G1.1 / 4 "X11 | 1,1 / 4 " | O222 | 50,5 | 66,5 | 8. 8 | 50.8 | 43 | 41 | |
1BFL9-24 | G1.1 / 2 "X11 | 1,1 / 2 " | O225 | 57,5 | 79.3 | 8. 8 | 60.3 | 50. | 48 |
