1. Kev txhais ntawm SAE Flange Adapter, SAE yog Lub Koom Haum ntawm Automotive Engineers hauv Teb Chaws Asmeskas cov qauv kev txhim kho lub koom haum rau kev lag luam hauv kev lag luam hauv kev ua lag luam hydraulic. Nws yog Flange Kev sib txuas nrog hydraulic flanged raj & yeeb nkab, txuas, hose kev txuas ntawm SAE flange clamps thiab 4 bolts sib dhos, Nws yog flange chaw nres nkoj mus Adapter kawg kuj yog xaiv tau li 24 nti cone connector, ORFS tube connector, 37 nti flared cone connector , 60 nti cone connector.
2. Cov qauv ntawm SAE Hydraulic Flange Adapters los ua ke tau tshwm sim hauv lub SAE Flange Clamps, thov nias qhov txuas. Nws feem ntau sib txuas los ntawm SAE Flange Port rau Adapter Ends, cov qauv ntawm cov adapter xaus (Lub cuab yeej hlau txuas rau lub hwj chim thiab kev siv dav dav) raws li:
● 24 degree cone connectors (ISO 8434-1: 2007)
● 37 ° flared connectors (ISO 8434-2: 2007)
● O-ring tiaj tus foob txuas (ISO 8434-3: 2005)
● 60 ° cone connectors nrog lossis tsis muaj O-nplhaib (ISO 8434-6: 2009)

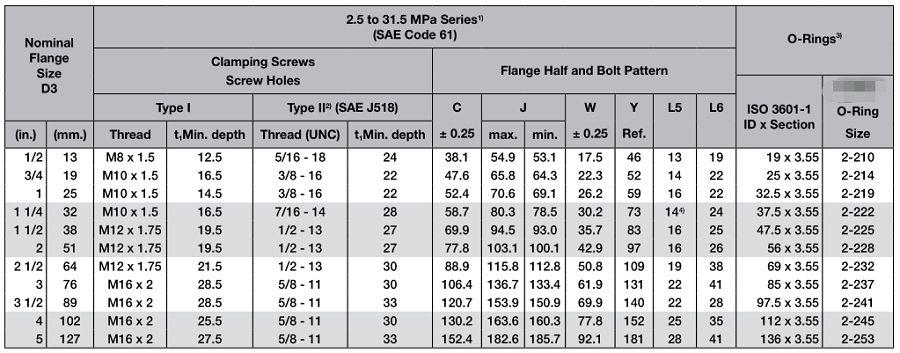

3. Qhov ntev ntawm SAE chaw nres nkoj rau Split Flange Cov Xov Xeem Raws Li Kev Cai 61/62 Flange Connectors:
SAE code 61 Flange Port Connector
SAE code 62 Flange Port Connector
Chaw Muag Khoom - ISO 6162
1) 1 MPa = 10 bar = 145 PSI.
2) Tsis yog rau kev tsim tshiab.
3) 90 durometer nitrile yog tus qauv rau kev siv hydraulic.
1. Split Flange Hydraulic Fittings ORFS 1FFL / 1FFS
2. SAE Flange Hydraulic Fittings ORFS 1FFL9 / 1FFS9
Cim npe nrov: split flange hydraulic fittings, Suav teb, manufacturers, lwm tus neeg, kev cai, tooj dag, swagelok, Parker, Stauff, Brennan, stainless hlau
