Hom BSPP xov 60 degree cone fittings: nrog lossis tsis muaj o-ntiv nplhaib, txiv neej lossis tus poj niam sawsiel txuas.
Cov qauv ntawm BSPP fittings catalog yog raws li ISO 8434-6 thiab BS 5200.
Cov xov rau 60 degree cone sib txuas yog BSPP yoog mus rau ISO 228-1.
Cov kav hlau tub txuas rau hydraulic cov hwj huam muaj zog thiab siv dav.
Jiayuan tseem tuaj yeem muab cov hlau stainless BSP fittings, tooj dag bsp yeeb fittings, bsp hose fittings thiab lwm yam.

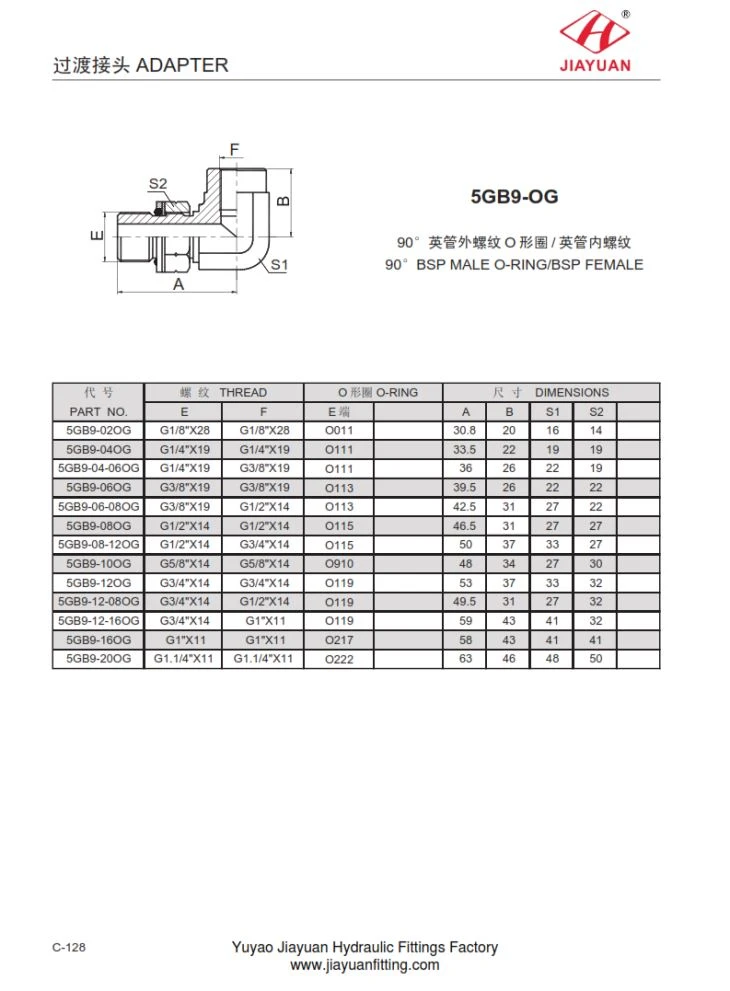

5GB9-OG 90 ° BSP MALE O-RING / BSP FEMALE ISO 1179 haum txuas qhov ntev raws li nram no:
NTU TSIS MUAJ. | NKAWV | O-RING | YAM | ||||
E | F | E | A | B | S1 | S2 | |
5GB9-02OG | G1 / 8 "X28 | G1 / 8 "X28 | O011 | 30,8 | 20 20 | 16 | 14 14 |
5GB9-04OG | G1 / 4 "X19 | G1 / 4 "X19 | O111 | 33,5 | 22 | 19 | 19 |
5GB9-04-06OG | G1 / 4 "X19 | G3 / 8 "X19 | O111 | 36 | 26 | 22 | 19 |
5GB9-06OG | G3 / 8 "X19 | G3 / 8 "X19 | O113 | 39,5 | 26 | 22 | 22 |
5GB9-06-08OG | G3 / 8 "X19 | G1 / 2 "X14 | O113 | 42,5 | 31 | 27. Muaj 27 leej | 22 |
5GB9-08OG | G1 / 2 "X14 | G1 / 2 "X14 | O115 | 46,5 | 31 | 27. Muaj 27 leej | 27. Muaj 27 leej |
5GB9-08-12OG | G1 / 2 "X14 | G3 / 4 "X14 | O115 | 50. | 37 | 33 | 27. Muaj 27 leej |
5GB9-10OG | G5 / 8 "X14 | G5 / 8 "X14 | O910 | 48 | 34 | 27. Muaj 27 leej | 30. 30 |
5GB9-12OG | G3 / 4 "X14 | G3 / 4 "X14 | O119 | 53 | 37 | 33 | 32. 32 |
5GB9-12-08OG | G3 / 4 "X14 | G1 / 2 "X14 | O119 | 49,5 | 31 | 27. Muaj 27 leej | 32. 32 |
5GB9-12-16OG | G3 / 4 "X14 | G1 "X11 | O119 | 59 | 43 | 41 | 32. 32 |
5GB9-16OG | G1 "X11 | G1 "X11 | O217 | 58 | 43 | 41 | 41 |
5GB9-20OG | G1.1 / 4 "X11 | G1.1 / 4 "X11 | O222 | 63 | 46 | 48 | 50. |
