Tus txiv neej 60 deg cone txuas
Cov khoom lag luam: JIS txheem Hydraulic fittings rau ntau lub adapters
JIS xov loj daim duab yog tsim raws li: BSPP Threads: ISO 228-1 G, JIS B0202; BSPT Xov: ISO 7/1, JIS B0203.
JIS fittings yog tsim nrog 30 ° flare thiab 60 ° cone kev sib txuas rau hose kawg, kuj siv ua hose adapters.
Txhawm rau yeeb nkab xov hom: JIS B2351 chaw nres nkoj, Npt, SAE ORB adapter thiab lwm yam.

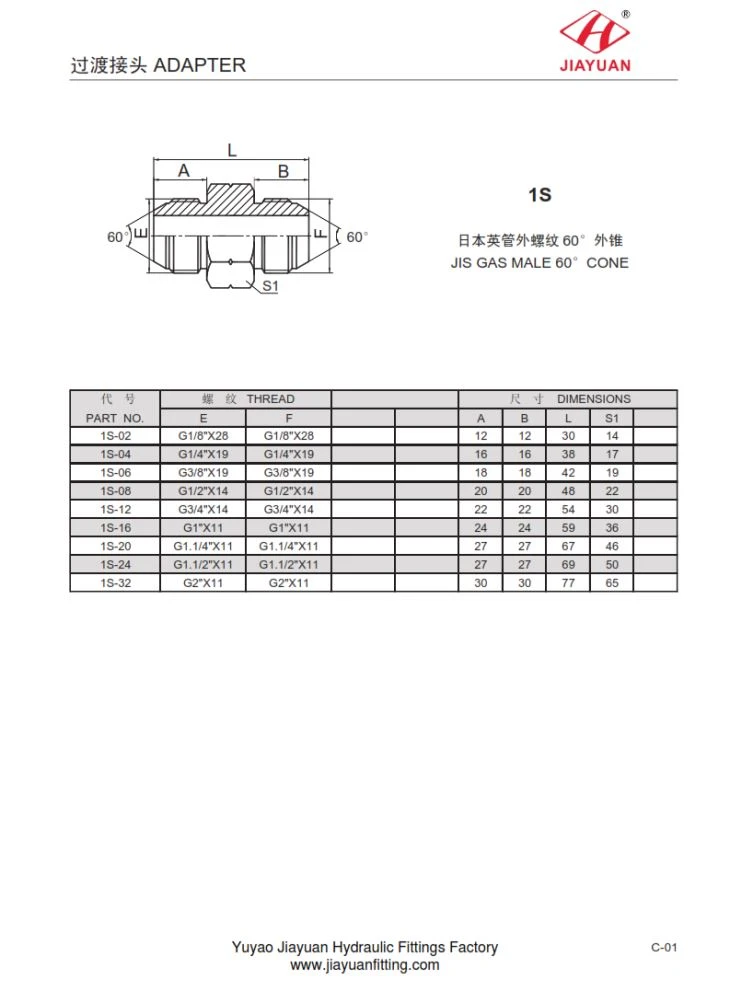

1S JIS GAS MALE 60 ° CONE cov lus qhia tshwj xeeb raws li hauv qab no:
NTU TSIS MUAJ. | NKAWV | YAM | ||||||
E | F | A | B | L | S1 | |||
1S-02 | G1 / 8 "X28 | G1 / 8 "X28 | 12. 12s | 12. 12s | 30. 30 | 14 14 | ||
1S-04 | G1 / 4 "X19 | G1 / 4 "X19 | 16 | 16 | 38 | 17 | ||
1S-06 | G3 / 8 "X19 | G3 / 8 "X19 | 18 18 | 18 18 | 42 | 19 | ||
1S-08 | G1 / 2 "X14 | G1 / 2 "X14 | 20 20 | 20 20 | 48 | 22 | ||
1S-12 | G3 / 4 "X14 | G3 / 4 "X14 | 22 | 22 | 54 | 30. 30 | ||
1S-16 | G1 "X11 | G1 "X11 | 24 | 24 | 59 | 36 | ||
1S-20 | G1.1 / 4 "X11 | G1.1 / 4 "X11 | 27. Muaj 27 leej | 27. Muaj 27 leej | 67 | 46 | ||
1S-24 | G1.1 / 2 "X11 | G1.1 / 2 "X11 | 27. Muaj 27 leej | 27. Muaj 27 leej | 69 | 50. | ||
1S-32 | G2 "X11 | G2 "X11 | 30. 30 | 30. 30 | 77 | 65 | ||
