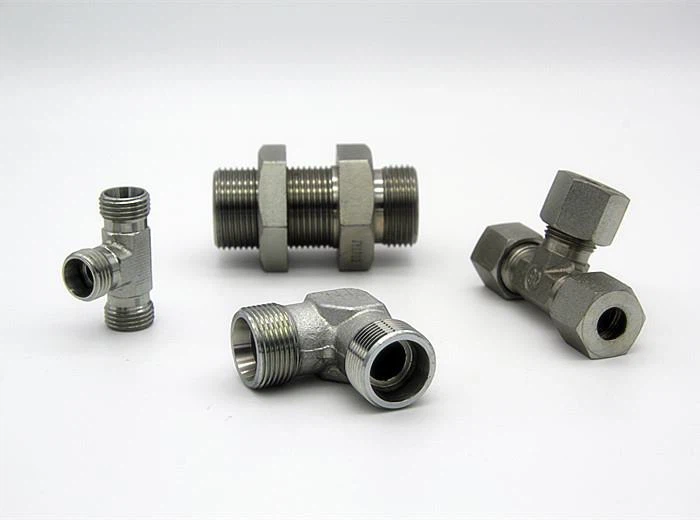

1. Kev txhais kom meej: DIN 24 ° cone sib txuas raws li tus qauv ntawm DIN 3861 / ISO 8434-1dimension, nws yog German DIN (DEUTSCHE INDUSTRIAL NORME) hom. Union hom yuav tsum kom tag nrho cov raj loj kawg nkaus yog tib yam li DIN 3861 yuav tsum muaj 24 qhov dej ntawm lub raj xa mus rau raj.

2. Txoj kev ntawm DIN hydraulic fittings kev twb kev txuas, tus txiv neej muaj metric muaj 24 lub rooj zaum, yuav ua niam txiv nrog ob hom poj niam (Txiv ntseej + txiav nplha rau tom ferrule + yeeb thiab DKO Swivel) qhia tias daim ntawv qhia:

3. Kev Zoo ntawm DIN raj fittings raws li nram no:

● Sib txhuas zoo sib txuas, kom tsis txhob pub dawb los ntawm ntau qhov kev pab cuam ntawm kev kub siab hydraulic kua, Pneumatic, Lubrication thiab qhov system txuas rau Agricultural, Khoom, Txheej thiab Engineering.

● Ib qho yooj yim rau kev rov qab siv dua tshiab, tube fittings tuaj yeem rov tuaj yeem rov qab ntau zaus los txhim kho kev tu vaj tse.

● Nres ntiaj teb dav, Qhov laj thawj tsim muaj thoob ntiaj teb kev lees paub nyob hauv Tebchaws Europe thiab Tuam Tshoj, Cov khoom siv fais fab tshaj plaws rau metric tube.

4. Cov Qauv Cov Khoom, Cov Nto, Qhov Kev Ntshiab thiab Khoom Siv:

● khoom siv: Carbon Steel Fittings-GB / T 699-2015 material no. 35 thiab 45. Cov Khoom Stainless Hlau Fittings GB / T 3280-2015 304 / 06Cr19Ni10 316 / 06Cr17Ni12Mo2 Brass Fittings GB / T 5231-2012 HPb59-1.

● Cov txheej txheem fais fab txheej txheem yog Zinc ntshiab plated Chrome 6 dawb ntu kev tiv thaiv raws li DIN 267 qhov 9 los yog DIN 5094.

● Fais fab fais fab, Hwj chim ntawm ntu thiab cov khoom, Tshawb fawb thiab cov txheej txheem ntsig txog cov khoom paug, kev ntsuam xyuas, thiab kev ceeb toom raws li ISO 18413.

5. Qhov ntev ntawm 24 ° cone kawg (DIN 3865 / ISO 8434-1)

6. Kev Ua Haujlwm Kev Ua Haujlwm ntawm DIN 24 ° raj fittings thiab adapters

● Cov duab muaj nyob rau hauv 45 °, 90 °, Ncaj Ncaj, Tee thiab Hla.

● Lub Cav Hluav Taws Xob Lub Nruab Nrab rau DIN fittings adapter, Hose sib dhos, Metric thiab Inch Raj.

● Cov Kev Ua Phem Ua Haujlwm yog LL / L / S Series xaiv.

1. Ncaj Ncej Fittings Union 1C / 1D Series

DIN 24 ° khob / DIN 24 ° khob

PART TSIS MUAJ.	THREAD		TUBE OD		DIMENSIONS					MPa
PART TSIS MUAJ.	E	F	D1	D2	l1	L1	S1	S2	S3	MPa
1C-12	M12X1.5	M12X1.5	6	6	10	39	12	14	14	31.5L
1C-14	M14X1.5	M14X1.5	8	8	11	40	14	17	17
1C-16	M16X1.5	M16X1.5	10	10	13	42	17	19	19
1C-18	M18X1.5	M18X1.5	12	12	14	43	19	22	22
1C-22	M22X1.5	M22X1.5	15	15	16	46	24	27	27
1C-26	M26X1.5	M26X1.5	18	18	16	48	27	32	32
1C-30	M30X2	M30X2	22	22	20	52	32	36	36	16L
1C-36	M36X2	M36X2	28	28	21	54	41	41	41
1C-45	M45X2	M45X2	35	35	20	63	46	50	50
1C-52	M52X2	M52X2	42	42	21	66	55	60	60
1D-14	M14X1.5	M14X1.5	6	6	16	45	14	17	17	63S
1D-16	M16X1.5	M16X1.5	8	8	18	47	17	19	19
1D-18	M18X1.5	M18X1.5	10	10	17	49	19	22	22
1D-20	M20X1.5	M20X1.5	12	12	19	51	22	24	24
1D-22	M22X1.5	M22X1.5	14	14	22	57	24	27	27
1D-24	M24X1.5	M24X1.5	16	16	21	57	27	30	30	40S
1D-30	M30X2	M30X2	20	20	23	66	32	36	36
1D-36	M36X2	M36X2	25	25	26	74	41	46	46
1D-42	M42X2	M42X2	30	30	27	80	46	50	50
1D-52	M52X2	M52X2	38	38	29	90	55	60	60	31.5S
Lus Cim: Yog tias koj xav muab tus adapter tso kom tiav nrog lub nplhaib thiab txiv ntseej, nws yog ib qho tsim nyog rau qhov "RN" tom qab peb qhov tsis muaj. piv txwv li 1C9-30RN.

2. Lub Luj Tshib Union Hydraulic Fittings 1C9 / 1D9 Series

DIN 24 ° khob / DIN 24 ° khob

PART TSIS MUAJ.	THREAD		TUBE OD		DIMENSIONS				MPa
PART TSIS MUAJ.	E	F	D1	D2	l1, l2	L1, L2	S1	S2, S3	MPa
1C9-12	M12X1.5	M12X1.5	6	6	12	27	12	14	31.5L
1C9-14	M14X1.5	M14X1.5	8	8	14	29	12	17
1C9-16	M16X1.5	M16X1.5	10	10	15	30	14	19
1C9-18	M18X1.5	M18X1.5	12	12	17	32	17	22
1C9-22	M22X1.5	M22X1.5	15	15	21	36	19	27
1C9-26	M26X1.5	M26X1.5	18	18	23.5	40	24	32
1C9-30	M30X2	M30X2	22	22	27.5	44	27	36	16L
1C9-36	M36X2	M36X2	28	28	30.5	47	36	41
1C9-45	M45X2	M45X2	35	35	34.5	56	41	50
1C9-52	M52X2	M52X2	42	42	40	63	50	60
1D9-14	M14X1.5	M14X1.5	6	6	16	31	12	17	63S
1D9-16	M16X1.5	M16X1.5	8	8	17	32	14	19
1D9-18	M18X1.5	M18X1.5	10	10	17.5	34	17	22
1D9-20	M20X1.5	M20X1.5	12	12	21.5	38	17	24
1D9-22	M22X1.5	M22X1.5	14	14	22	40	19	27
1D9-24	M24X1.5	M24X1.5	16	16	24.5	43	24	30	40S
1D9-30	M30X2	M30X2	20	20	26.5	48	27	36
1D9-36	M36X2	M36X2	25	25	30	54	36	46
1D9-42	M42X2	M42X2	30	30	35.5	62	41	50	31.5S
1D9-52	M52X2	M52X2	38	38	41	72	50	60	31.5S
Lus Cim: Yog tias koj xav muab tus adapter tso kom tiav nrog lub nplhaib thiab txiv ntseej, nws yog ib qho tsim nyog rau qhov "RN" tom qab peb qhov tsis muaj. piv txwv li 1C9-30RN.

3. Tee Hydraulic Fittings Union AC / AD Series

DIN 24 ° cone / DIN 24 ° khob / DIN 24 ° khob

duab011

PART TSIS MUAJ.	THREAD	TUBE OD	DIMENSIONS				MPa
PART TSIS MUAJ.	E, F, G	D1, D2, D3	l1, l2, l3	L1, L2, L3	S1	S2, S3, S4	MPa
AC-08	M8X1	4	11	21	9	10	10LL
AC-10	M10X1	5	9.5	21	9	12
AC-10LL	M10X1	6	9.5	21	9	12
AC-12LL	M12X1	8	11.5	23	12	14
AC-12	M12X1.5	6	12	27	12	14	25L
AC-14	M14X1.5	8	14	29	12	17
AC-16	M16X1.5	10	15	30	14	19
AC-18	M18X1.5	12	17	32	17	22
AC-22	M22X1.5	15	21	36	19	27
AC-26	M26X1.5	18	23.5	40	24	32
AC-30	M30X2	22	27.5	44	27	36	16L
AC-36	M36X2	28	30.5	47	36	41
AC-45	M45X2	35	34.5	56	41	50
AC-52	M52X2	42	40	63	50	60
AD-14	M14X1.5	6	16	31	12	17	63S
AD-16	M16X1.5	8	17	32	14	19
AD-18	M18X1.5	10	17.5	34	17	22
AD-20	M20X1.5	12	21.5	38	17	24
AD-22	M22X1.5	14	22	40	19	27
AD-24	M24X1.5	16	24.5	43	24	30	40S
AD-30	M30X2	20	26.5	48	27	36
AD-36	M36X2	25	30	54	36	46
AD-42	M42X2	30	35.5	62	41	50
AD-52	M52X2	38	41	72	50	60	31.5S
Lus Cim: Yog tias koj xav muab tus adapter tso kom tiav nrog lub nplhaib thiab txiv ntseej, nws yog ib qho tsim nyog rau qhov "RN" tom qab peb qhov tsis muaj. xws li AC-22RN.

4. Hydraul Hydraulic Fittings Union XC / XD Series

DIN 24 ° cone / DIN 24 ° khob / DIN 24 ° khob

duab013

PART TSIS MUAJ.	THREAD	TUBE OD	DIMENSIONS				MPa
PART TSIS MUAJ.	E, F, G, H	D1, D2, D3, D4	l1	L1	S1	S2	MPa
XC-12	M12X1.5	6	12	27	12	14	31.5L
XC-14	M14X1.5	8	14	29	12	17
XC-16	M16X1.5	10	15	30	14	19
XC-18	M18X1.5	12	17	32	17	22
XC-22	M22X1.5	15	21	36	19	27
XC-26	M26X1.5	18	23.5	40	24	32
XC-30	M30X2	22	27.5	44	27	36	16L
XC-36	M36X2	28	30.5	47	36	41
XC-45	M45X2	35	34.5	56	41	50
XC-52	M52X2	42	40	63	50	60
XD-14	M14X1.5	6	16	31	12	17	63S
XD-16	M16X1.5	8	17	32	14	19
XD-18	M18X1.5	10	17.5	34	17	22
XD-20	M20X1.5	12	21.5	38	17	24
XD-22	M22X1.5	14	22	40	19	27
XD-24	M24X1.5	16	24.5	43	24	30	40S
XD-30	M30X2	20	26.5	48	27	36
XD-36	M36X2	25	30	54	36	46
XD-42	M42X2	30	35.5	62	41	50
XD-52	M52X2	38	41	72	50	60	31.5S
Lus Cim: Yog tias koj xav muab tus adapter tso kom tiav nrog lub nplhaib thiab txiv ntseej, nws yog ib qho tsim nyog rau qhov "RN" tom qab peb qhov tsis muaj. xws li XC-30RN.

5. Ncaj Ntaus Nrig Bulkhead Hydraulic Fittings Union 6C / 6D

DIN 24 ° khob / DIN 24 ° pob txha

PART TSIS MUAJ.	THREAD		TUBE OD		DIMENSIONS							MPa
PART TSIS MUAJ.	E	F	D1	D2	l1	l2	L1	L2	S1	S2, S3	S4	MPa
6C-12	M12X1.5	M12X1.5	6	6	7	27	22	42	17	14	17	31.5L
6C-14	M14X1.5	M14X1.5	8	8	8	27	23	42	19	17	19
6C-16	M16X1.5	M16X1.5	10	10	10	28	25	43	22	19	22
6C-18	M18X1.5	M18X1.5	12	12	10	29	25	44	24	22	24
6C-22	M22X1.5	M22X1.5	15	15	12	31	27	46	27	27	30
6C-26	M26X1.5	M26X1.5	18	18	13.5	32.5	30	49	32	32	36
6C-30	M30X2	M30X2	22	22	16.5	34.5	33	51	36	36	41	16L
6C-36	M36X2	M36X2	28	28	18.5	35.5	35	52	41	41	46
6C-45	M45X2	M45X2	35	35	18.5	36.5	40	58	50	50	55
6C-52	M52X2	M52X2	42	42	19	36	42	59	60	60	65
6D-14	M14X1.5	M14X1.5	6	6	12	29	27	44	19	17	19	63S
6D-16	M16X1.5	M16X1.5	8	8	13	29	28	44	22	19	22
6D-18	M18X1.5	M18X1.5	10	10	14.5	29.5	31	46	24	22	24
6D-20	M20X1.5	M20X1.5	12	12	14.5	30.5	31	47	27	24	27
6D-22	M22X1.5	M22X1.5	14	14	17	32	35	50	30	27	30
6D-24	M24X1.5	M24X1.5	16	16	16.5	31.5	35	50	32	30	32	40S
6D-30	M30X2	M30X2	20	20	17.5	33.5	39	55	41	36	41
6D-36	M36X2	M36X2	25	25	20	35	44	59	46	46	46
6D-42	M42X2	M42X2	30	30	21.5	37.5	48	64	50	50	50
6D-52	M52X2	M52X2	38	38	22	37	53	68	65	60	65	31.5S
Lus Cim: Yog tias koj txaus siab hais kom tus adapter nrog xauv lub txiv ntseej, thov tso rau tom qab "LN" tom qab peb feem no.for 6C-30LN, hais kom tus adapter nrog lub nplhaib thiab txiv ntsej muag, ntxig rau "RN" tom qab qhov tsis muaj., Piv txwv li 6C-30RN, hais kom tus adapter xauv lub txiv ntseej thiab txiav nplhaib thiab txiv ntsej muag, ntxig rau "LN / RN" tom qab ib feem tsis muaj., piv txwv li 6C-30LN / RN.

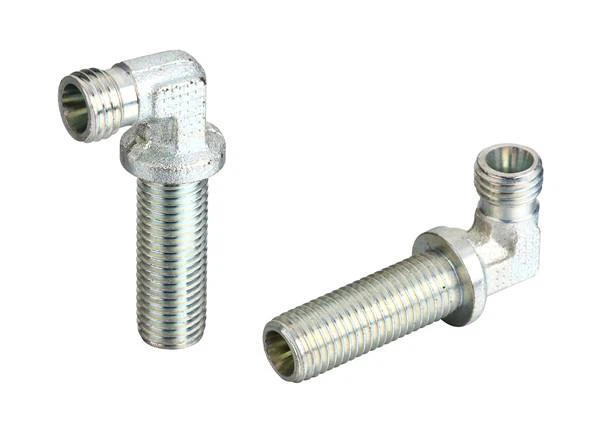

6. Luj Tshib Bulkhead Hydraulic Fittings Union 6C9 / 6D9

DIN 24 ° khob / DIN 24 ° pob txha

PART TSIS MUAJ.	THREAD		TUBE OD		DIMENSIONS								MPa
PART TSIS MUAJ.	E	F	D1	D2	l1	l2	l3	L1	L2	S1	S2, S3	S4	MPa
6C9-12	M12X1.5	M12X1.5	6	6	27	12	14	42	27	12	14	17	31.5L
6C9-14	M14X1.5	M14X1.5	8	8	27	14	17	42	29	12	17	19
6C9-16	M16X1.5	M16X1.5	10	10	28	15	18	43	30	14	19	22
6C9-18	M18X1.5	M18X1.5	12	12	29	17	20	44	32	17	22	24
6C9-22	M22X1.5	M22X1.5	15	15	31	21	23	46	36	19	27	30
6C9-26	M26X1.5	M26X1.5	18	18	32.5	23.5	24	49	40	24	32	36
6C9-30	M30X2	M30X2	22	22	34.5	27.5	30	51	44	27	36	41	16L
6C9-36	M36X2	M36X2	28	28	35.5	30.5	34	52	47	36	41	46
6C9-45	M45X2	M45X2	35	35	36.5	34.5	39	58	56	41	50	55
6C9-52	M52X2	M52X2	42	42	36	40	43	59	63	50	60	65
6D9-14	M14X1.5	M14X1.5	6	6	29	16	17	44	31	12	17	19	63S
6D9-16	M16X1.5	M16X1.5	8	8	29	17	18	44	32	14	19	22
6D9-18	M18X1.5	M18X1.5	10	10	29.5	17.5	20	46	34	17	22	24
6D9-20	M20X1.5	M20X1.5	12	12	30.5	21.5	21	47	38	17	24	27
6D9-22	M22X1.5	M22X1.5	14	14	32	22	23	50	40	19	27	30
6D9-24	M24X1.5	M24X1.5	16	16	31.5	24.5	24	50	43	24	30	32	40S
6D9-30	M30X2	M30X2	20	20	33.5	26.5	30	55	48	27	36	41
6D9-36	M36X2	M36X2	25	25	35	30	34	59	54	36	46	46
6D9-42	M42X2	M42X2	30	30	37.5	35.5	39	64	62	41	50	50
6D9-52	M52X2	M52X2	38	38	37	41	43	68	72	50	60	65	31.5S
Lus Cim: Yog tias koj xav muab tus adapter nrog xauv lub txiv ntseej, thov tso rau tom qab "LN" tom qab peb qhov no. piv txwv li 6C9- 30LN, hais kom tus adapter nrog lub nplhaib thiab txiv ntsej muag, ntxig rau "RN" tom qab qhov tsis muaj., Piv txwv li 6C9-30RN, hais kom tus adapter xauv lub txiv ntseej thiab txiav nplhaib thiab txiv ntsej muag, ntxig rau "LN / RN" tom qab qhov tsis muaj. , piv txwv li 6C9-30LN / RN.
