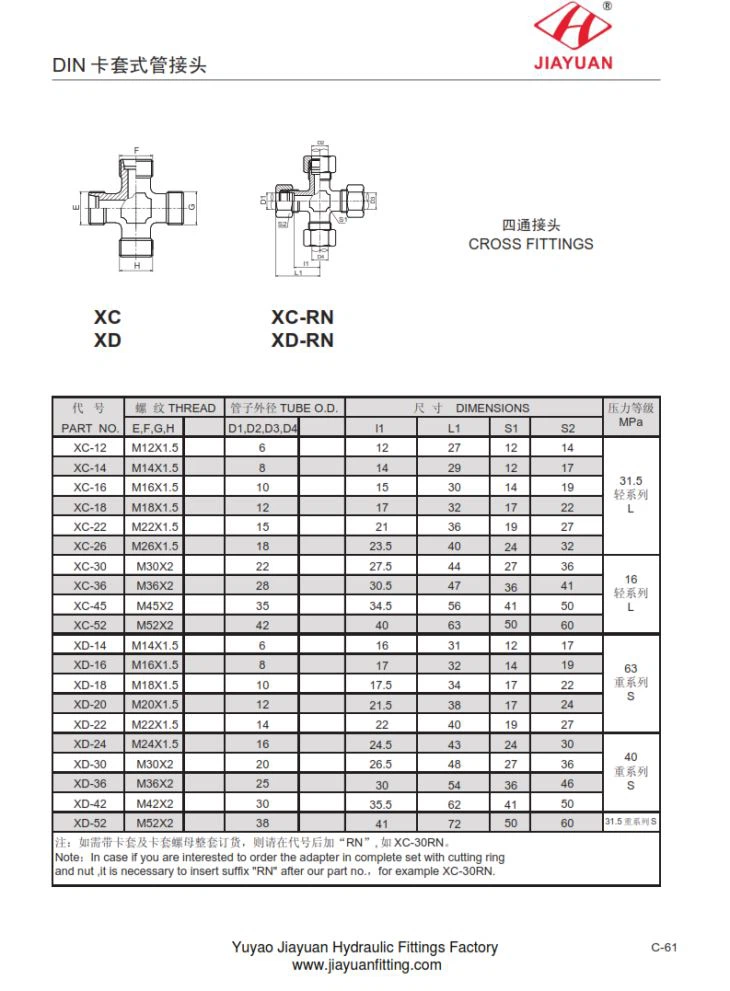

Cov Hom Khoom: Metric Bite Hom Hla Weld Tube Fittings-Tube rau raj txuas
Kev Lag Luam Cov Qauv: DIN 2353, ISO 8434-1, DIN 3861
Kev Txuas Lus E rau F style: 24 ° lub khob hliav qab rau Bulkhead, swivel nrog o-ntiv nplhaib, weld-on / weld-in, stud, reducer
Puab: Ncaj thiab lwm yam.
Ua haujlwm siab: 16-63 Mpa
Cov Khoom Siv Fittings: tooj dag; Cov hlau; Stainless Hlau
Daim ntawv thov: Cov khoom siv ua liaj ua teb, tsheb txheej txheem, hloov khoom siv tshuaj, Siv khoom siv, hloov roj, Hydraulic, tsim khoom siv, tubrog nkoj, Siv cov khoom siv, Khoom siv txawb, Oilfield, ntim, Tsheb thauj mus los
NTU TSIS MUAJ. XOV TUBE OD
E, F, G, H D1, D2, D3, D4
XC-12 M12X1.5 6
XC-14 M14X1.5 8
XC-16 M16X1.5 10
XC-18 M18X1.5 12
XC-22 M22X1.5 15
XC-26 M26X1.5 18
XC-30 M30X2 22
XC-36 M36X2 28
XC-45 M45X2 35
XC-52 M52X2 42
XD-14 M14X1.5 6
XD-16 M16X1.5 8
XD-18 M18X1.5 10
XD-20 M20X1.5 12
XD-22 M22X1.5 14
XD-24 M24X1.5 16
XD-30 M30X2 20
XD-36 M36X2 25
XD-42 M42X2 30
XD-52 M52X2 38
Cim npe nrov: Hla metric raj fittings, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, kev cai, tooj dag, swagelok, Parker, Stauff, Brennan, stainless hlau
