Cov khoom lag luam: BSPT xov mus rau yeeb nkab fittings adapter
BSPT xov kab ntawv loj: los ntawm G1 / 8 "txog G3", feem ntau yog siv hauv UK, Western Europe thiab Nyij Pooj.
BSPT (R) txiv neej thiab poj niam txoj xov raws li BS 21, ISO 7/1. JIS B 0203, zoo ib yam li 3852-2 daim ntawv Z, JIS B8363.
Txhawm rau cov yeeb nkab xov hom: Npt adapter, SAE ORB adapter, BSPP, Metric, UNF Chaw nres nkoj fittings,

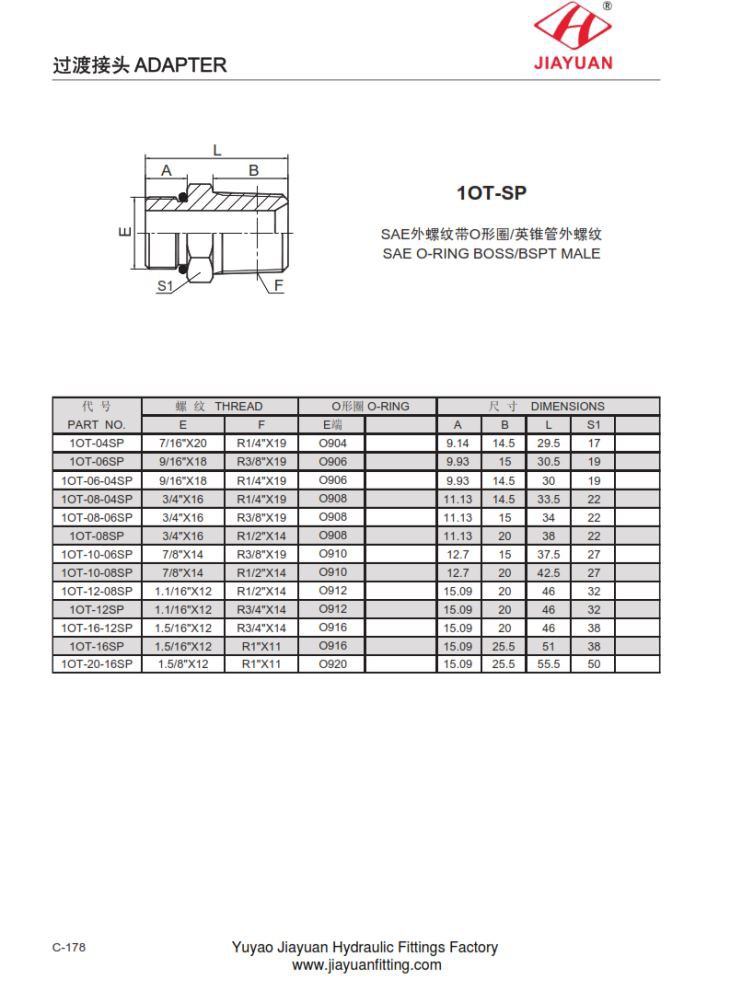

1OT-SP SAE O-RING BOSS rau BSPT MALE Daim duab Dimension raws li hauv qab no:
TSHOOJ NO. | NKAWV | O-RING | YAM | ||||||
E | F | E | A | B | L | S1 | |||
1OT-04SP | 7/16 "X20 | R1 / 4 "X19 | O904 | 9.14 | 14,5 | 29,5 | 17 | ||
1OT-06SP | 9/16 "X18 | R3 / 8 "X19 | O906 | 9.93 | 15 15 | 30,5 | 19 | ||
1OT-06-04SP | 9/16 "X18 | R1 / 4 "X19 | O906 | 9.93 | 14,5 | 30. 30 | 19 | ||
1OT-08-04SP | 3/4 "X16 | R1 / 4 "X19 | O908 | 11,13 | 14,5 | 33,5 | 22 | ||
1OT-08-06SP | 3/4 "X16 | R3 / 8 "X19 | O908 | 11,13 | 15 15 | 34 | 22 | ||
1OT-08SP | 3/4 "X16 | R1 / 2 "X14 | O908 | 11,13 | 20 20 | 38 | 22 | ||
1OT-10-06SP | 7/8 "X14 | R3 / 8 "X19 | O910 | 12,7 | 15 15 | 37,5 | 27. Muaj 27 leej | ||
1OT-10-08SP | 7/8 "X14 | R1 / 2 "X14 | O910 | 12,7 | 20 20 | 42,5 | 27. Muaj 27 leej | ||
1OT-12-08SP | 1.1 / 16 "X12 | R1 / 2 "X14 | O912 | 15.09 | 20 20 | 46 | 32. 32 | ||
1OT-12SP | 1.1 / 16 "X12 | R3 / 4 "X14 | O912 | 15.09 | 20 20 | 46 | 32. 32 | ||
1OT-16-12SP | 1.5 / 16 "X12 | R3 / 4 "X14 | O916 | 15.09 | 20 20 | 46 | 38 | ||
1OT-16SP | 1.5 / 16 "X12 | R1 "X11 | O916 | 15.09 | 25,5 | 51 | 38 | ||
1OT-20-16SP | 1.5 / 8 "X12 | R1 "X11 | O920 | 15.09 | 25,5 | 55,5 | 50. | ||
