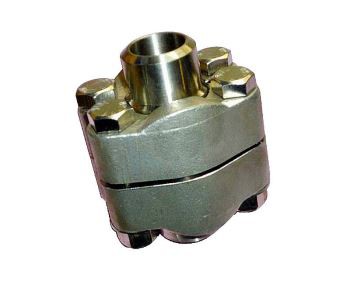

SAE Split Flange hydraulic hose fittings system
Hydraulic split flange fittings yog siv los txuas cov hose tsis kam hloov, hloov kho rau lub raj xa dej thiab cov yeeb nkab los ntawm 4 ntsia liaj qhov rooj flange clamp system. Hydraulic flange hose fittings yog tsim flanged lub taub hau, zawj rau o-rings foob, hose fittings kawg yog crimped nrog ferrule rau tom cov hoses hydraulic. SAE cais flange halves los clamp flanged taub hau los ntawm zawm 4 thooj.
Hyraulic hose flange fittings yog txuas rau SAE J518 flange chaw nres nkoj qhov ntev daim qauv xws li cov khoom thaiv, 4 bolts weld flange, 4 bolt tube txuas flange thiab lwm yam Nws yog foob los ntawm ob hom: 1 yog code 61 flange o-ntiv nplhaib loj, 2 yog tus lej 62 flange o-ntiv nplhaib loj. Clamp flange fittings tseem xav tau cov ntxhua khaub ncaws, o-cov nplhaib, cov txiv ntoo, cov kaus mom thiab lwm yam SAE flange clamps muaj ob hom: 1 yog cais flange halves, ib khub rau clamp flanged taub hau; 2 yog Ib-thooj flange clamps nrog 4 bolts qhov kom kho flange taub hau.
Cais flange yam ntawm hose fittings muaj ob hom: SAE 61 code cais flange halves kawg nrog 3000 psi ua haujlwm siab, txhav los yog viav hydraulic hoses thiab fittings los ntawm ferrule; SAE code 62 cais flange halves xaus nrog 6000 psi ua haujlwm siab, txhav los yog khij hydraulic hoses thiab fittings los ntawm ferrule.
Jiayuan muaj kev txuas txuas kawg hom los ntawm kev sib cais flange rau hose fittings, cov hom duab muaj qhov ncaj, elvow, 45 degree luj tshib, ntev loj thiab lwm yam; Faib flange tag lawm raws li ISO 6162-1 thiab ISO 6162-2; Hose fittings uas raws li ISO 12151 series rau hydraulic hoses uas raws li SAE 100R.
Ncaj flange hose fittings
45 luj tshib flange hose fittings
90 luj tshib flange hose fittings
30 lauj tshib flange hose fittings
60 lub luj tshib flange hose fittings
67.5 lauj tshib flange hose fittings
22,5 lauj tshib flange hose fittings
SAE FLANGE 3000 PSI Ncaj hose fittings
SN | PARTNO. | FLANGENO. | HOSEBORE | DIMENSIONS | |||
DN | DASH | A | D | L | |||
1 | 87311-08-08 | 1/2" | 13 | 08 | 46 | 30.2 | 6.73 |
2 | 87311-08-10 | 1/2" | 16 | 10 | 47 | 30.2 | 6.73 |
3 | 87311-12-08 | 3/4" | 13 | 08 | 47 | 38.1 | 6.73 |
4 | 87311-12-10 | 3/4" | 16 | 10 | 47.5 | 38.1 | 6.73 |
5 | 87311-12-12 | 3/4" | 19 | 12 | 48 | 38.1 | 6.73 |
6 | 87311-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 6.73 |
7 | 87311-16-12 | 1" | 19 | 12 | 51 | 44.4 | 8 |
8 | 87311-16-16 | 1" | 25 | 16 | 52 | 44.4 | 8 |
9 | 87311-16-20 | 1" | 32 | 20 | 53 | 44.4 | 8 |
10 | 87311-20-12 | 1.1 / 4" | 19 | 12 | 56 | 50.8 | 8 |
11 | 87311-20-16 | 1.1 / 4" | 25 | 16 | 57 | 50.8 | 8 |
12 | 87311-20-20 | 1.1 / 4" | 32 | 20 | 58 | 50.8 | 8 |
13 | 87311-20-24 | 1.1 / 4" | 38 | 24 | 61 | 50.8 | 8 |
14 | 87311-24-20 | 1.1 / 2" | 32 | 20 | 68 | 60.3 | 8 |
15 | 87311-24-24 | 1.1 / 2" | 38 | 24 | 68 | 60.3 | 8 |
16 | 87311-32-24 | 2" | 38 | 24 | 70 | 71.4 | 9.53 |
17 | 87311-32-32 | 2" | 51 | 32 | 70 | 71.4 | 9.53 |
18 | 87311-40-32 | 2.1 / 2" | 51 | 32 | 73 | 84.1 | 9.53 |
19 | 87311-40-40 | 2.1 / 2" | 63 | 40 | 76 | 84.1 | 9.53 |
20 | 87311-40-48 | 2.1 / 2" | 76 | 48 | 78.5 | 84.1 | 9.53 |
21 | 87311-48-48 | 3" | 76 | 48 | 78.5 | 102 | 9.53 |
22 | 87311-56-56 | 3.1 / 2" | 90 | 56 | 87.5 | 114 | 11.2 |
23 | 87311-64-64 | 4" | 102 | 64 | 95.5 | 127 | 11.2 |
