Cov khoom lag luam: Hydraulic Flange SAE adapter fittings 1FLW9 1FSW9-W
Kev Lag Luam Cov Qauv: SAE J518, ISO 6162
Qhov Txuas E rau F style: 90 ° SAE FLANGE / WELD TUBE
Puab: Luj tshib, ncaj, thaiv thiab lwm yam.
Kev ntsuas ua haujlwm siab: SAE code 61 yog 2.5 txog 31.5 Mpa; SAE code 62 yog 40 Mpa.
Cov Khoom Siv Fittings: tooj dag; Cov hlau; Stainless Hlau
Daim ntawv thov: Cov khoom siv ua liaj ua teb, tsheb txheej txheem, kev hloov tshuaj, Siv khoom siv, hloov roj, Hydraulic, tsim khoom siv, tubrog nkoj, Siv cov khoom siv, Khoom siv txawb, Oilfield, ntim, Tsheb thauj mus los

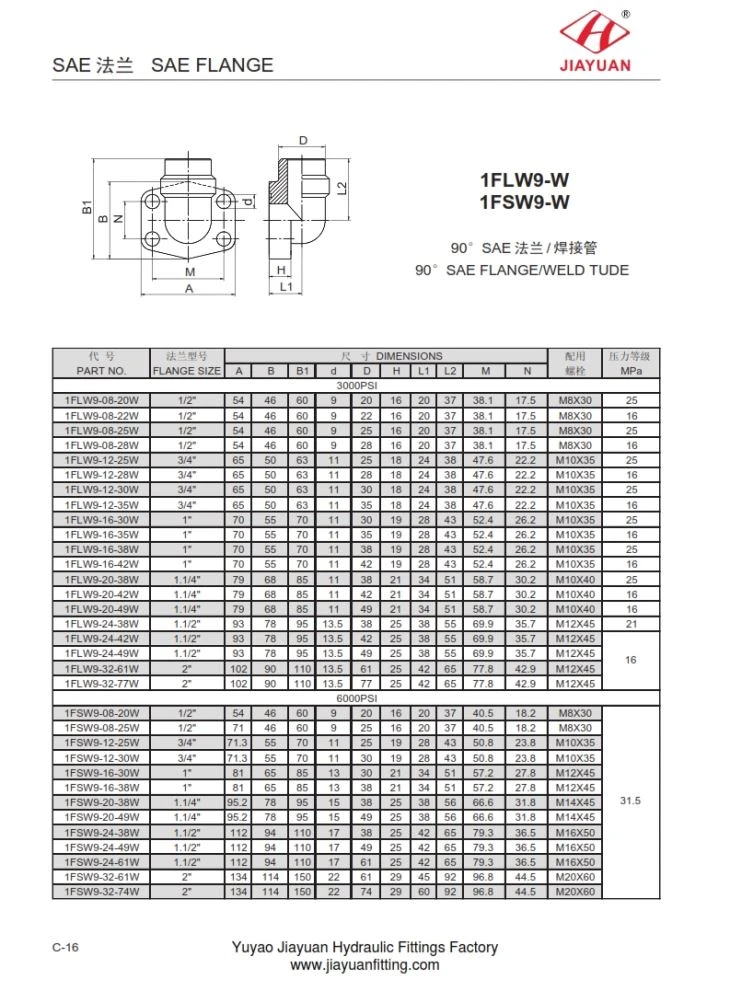

1FLW9 1FSW9-W 90 ° SAE flange / weld tube Qhov loj me Qhov loj me ntawm cov lus qhia raws li hauv qab no
TSHOOJ NO. | FLANGE SIZE | YAM | MPa | ||||||||||
A | B | B1 | d | D | H | L1 | L2 | M | N | ||||
3000PSI | |||||||||||||
1FLW9-08-20W | 1/2 " | 54 | 46 | 60 | 9. 9 | 20 20 | 16 | 20 20 | 37 | 38.1 | 17,5 | M8X30 | 25. 25 |
1FLW9-08-22W | 1/2 " | 54 | 46 | 60 | 9. 9 | 22 | 16 | 20 20 | 37 | 38.1 | 17,5 | M8X30 | 16 |
1FLW9-08-25W | 1/2 " | 54 | 46 | 60 | 9. 9 | 25. 25 | 16 | 20 20 | 37 | 38.1 | 17,5 | M8X30 | 25. 25 |
1FLW9-08-28W | 1/2 " | 54 | 46 | 60 | 9. 9 | 28. 28 | 16 | 20 20 | 37 | 38.1 | 17,5 | M8X30 | 16 |
1FLW9-12-25W | 3/4 " | 65 | 50. | 63 | 11. 11 | 25. 25 | 18 18 | 24 | 38 | 47.6 | 22.2 | M10X35 | 25. 25 |
1FLW9-12-28W | 3/4 " | 65 | 50. | 63 | 11. 11 | 28. 28 | 18 18 | 24 | 38 | 47.6 | 22.2 | M10X35 | 16 |
1FLW9-12-30W | 3/4 " | 65 | 50. | 63 | 11. 11 | 30. 30 | 18 18 | 24 | 38 | 47.6 | 22.2 | M10X35 | 25. 25 |
1FLW9-12-35W | 3/4 " | 65 | 50. | 63 | 11. 11 | 35 | 18 18 | 24 | 38 | 47.6 | 22.2 | M10X35 | 16 |
1FLW9-16-30W | 1 " | 70 | 55 | 70 | 11. 11 | 30. 30 | 19 | 28. 28 | 43 | 52.4 | 26.2 | M10X35 | 25. 25 |
1FLW9-16-35W | 1 " | 70 | 55 | 70 | 11. 11 | 35 | 19 | 28. 28 | 43 | 52.4 | 26.2 | M10X35 | 16 |
1FLW9-16-38W | 1 " | 70 | 55 | 70 | 11. 11 | 38 | 19 | 28. 28 | 43 | 52.4 | 26.2 | M10X35 | 25. 25 |
1FLW9-16-42W | 1 " | 70 | 55 | 70 | 11. 11 | 42 | 19 | 28. 28 | 43 | 52.4 | 26.2 | M10X35 | 16 |
1FLW9-20-38W | 1,1 / 4 " | 79 | 68 | 85 | 11. 11 | 38 | 21 | 34 | 51 | 58,7 | 30.2 | M10X40 | 25. 25 |
1FLW9-20-42W | 1,1 / 4 " | 79 | 68 | 85 | 11. 11 | 42 | 21 | 34 | 51 | 58,7 | 30.2 | M10X40 | 16 |
1FLW9-20-49W | 1,1 / 4 " | 79 | 68 | 85 | 11. 11 | 49 | 21 | 34 | 51 | 58,7 | 30.2 | M10X40 | 16 |
1FLW9-24-38W | 1,1 / 2 " | 93 | 78 | 95 | 13,5 | 38 | 25. 25 | 38 | 55 | 69.9 | 35,7 | M12X45 | 21 |
1FLW9-24-42W | 1,1 / 2 " | 93 | 78 | 95 | 13,5 | 42 | 25. 25 | 38 | 55 | 69.9 | 35,7 | M12X45 | 16 |
1FLW9-24-49W | 1,1 / 2 " | 93 | 78 | 95 | 13,5 | 49 | 25. 25 | 38 | 55 | 69.9 | 35,7 | M12X45 | |
1FLW9-32-61W | 2 " | 102 | 90 | 110 | 13,5 | 61 | 25. 25 | 42 | 65 | 77.8 | 42.9 | M12X45 | |
1FLW9-32-77W | 2 " | 102 | 90 | 110 | 13,5 | 77 | 25. 25 | 42 | 65 | 77.8 | 42.9 | M12X45 | |
6000PSI | |||||||||||||
1FSW9-08-20W | 1/2 " | 54 | 46 | 60 | 9. 9 | 20 20 | 16 | 20 20 | 37 | 40,5 | 18.2 | M8X30 | 31,5 |
1FSW9-08-25W | 1/2 " | 71 | 46 | 60 | 9. 9 | 25. 25 | 16 | 20 20 | 37 | 40,5 | 18.2 | M8X30 | |
1FSW9-12-25W | 3/4 " | 71.3 | 55 | 70 | 11. 11 | 25. 25 | 19 | 28. 28 | 43 | 50.8 | 23,8 | M10X35 | |
1FSW9-12-30W | 3/4 " | 71.3 | 55 | 70 | 11. 11 | 30. 30 | 19 | 28. 28 | 43 | 50.8 | 23,8 | M10X35 | |
1FSW9-16-30W | 1 " | 81 | 65 | 85 | 13. 13 | 30. 30 | 21 | 34 | 51 | 57.2 | 27,8 | M12X45 | |
1FSW9-16-38W | 1 " | 81 | 65 | 85 | 13. 13 | 38 | 21 | 34 | 51 | 57.2 | 27,8 | M12X45 | |
1FSW9-20-38W | 1,1 / 4 " | 95.2 | 78 | 95 | 15 15 | 38 | 25. 25 | 38 | 56 | 66.6 | 31,8 | M14X45 | |
1FSW9-20-49W | 1,1 / 4 " | 95.2 | 78 | 95 | 15 15 | 49 | 25. 25 | 38 | 56 | 66.6 | 31,8 | M14X45 | |
1FSW9-24-38W | 1,1 / 2 " | 112 | 94. | 110 | 17 | 38 | 25. 25 | 42 | 65 | 79.3 | 36,5 | M16X50 | |
1FSW9-24-49W | 1,1 / 2 " | 112 | 94. | 110 | 17 | 49 | 25. 25 | 42 | 65 | 79.3 | 36,5 | M16X50 | |
1FSW9-24-61W | 1,1 / 2 " | 112 | 94. | 110 | 17 | 61 | 25. 25 | 42 | 65 | 79.3 | 36,5 | M16X50 | |
1FSW9-32-61W | 2 " | 134 | 114 | 150 | 22 | 61 | 29. 29 | 45 | 92 | 96.8 | 44,5 | M20X60 | |
1FSW9-32-74W | 2 " | 134 | 114 | 150 | 22 | 74 | 29. 29 | 60 | 92 | 96.8 | 44,5 | M20X60 |
