1. Kev txhais ntawm Metric roj Plugs (ISO 6149-4: 2017 version) thiab lub kaus mom feem ntau yog siv hauv kev kub siab hydraulic system, ntsaws yog txiv neej metric kev kawm mus txuas txuas qub, manifold thaiv, roj ntws chaw nres nkoj thiab lwm yam, muaj ob lub sealing ntawm O -thiab ED nplhaib. DIN lub kaus mom yog cov txiv ntoo, DKO ntsaws rau kev siv cov yeeb nkab tag.
2. Cov hau kev ntawm Metric roj sib koom ua ke raws li ib hom: Cov tub ntxhais hluas cov menyuam kawm tiav nrog sab nraud Hex thiab sab hauv Hex ntsaws ntsaws rau ISO 9974 Ncaj Face Sealing thiab ISO 6149 O-ring Sealing chaw nres nkoj, tag nrho metric threads yog raws li ISO 261 txheem. Vim hais tias nws yog ib qho yooj yim nres los yog txiav cov roj yeeb nkab kab nrog ib kawg connector.
DIN cap rau connector (24 nta Cone mus rau lub raj thiab DKO Swivel rau adapter)
DIN Metric Plug rau Chaw Nres Nkoj ntawm Manifold, li qub thiab faib khoom thiab lwm yam.
|
|

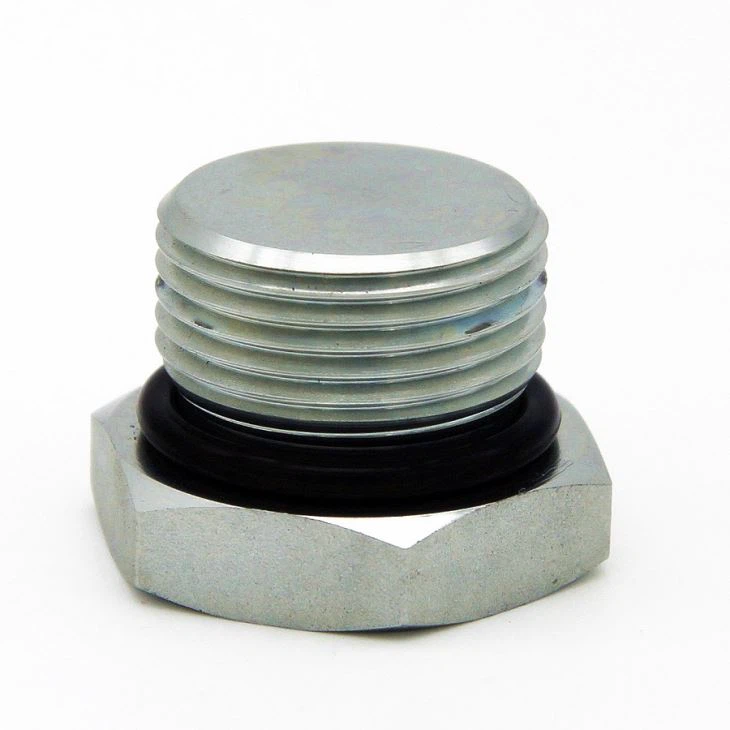

1. DIN Metric Plug Sab Nrauv Hex 4C / D
24 qhov chaw txawb thaj av
PART TSIS MUAJ. | THREAD | TUBE OD | DIMENSIONS | MPa | |||
E | D1 | l1 | L1 | S1 | S2 | ||
4C-12 | M12x1.5 | 6 | 7 | 22 | 12 | 14 | 31.5L |
4C-14 | M14x1.5 | 8 | 8 | 23 | 14 | 17 | |
4C-16 | M16x1.5 | 10 | 9 | 24 | 17 | 19 | |
4C-18 | M18x1.5 | 12 | 10 | 25 | 19 | 22 | |
4C-22 | M22x1.5 | 15 | 11 | 26 | 24 | 27 | |
4C-26 | M26X1.5 | 18 | 11.5 | 28 | 27 | 32 | |
4C-30 | M30x2 | 22 | 13.5 | 30 | 32 | 36 | 16L |
4C-30D | M30x1.5 | 22 | 13.5 | 30 | 32 | 36 | |
4C-36 | M36x2 | 28 | 14.5 | 31 | 41 | 41 | |
4C-36D | M36x1.5 | 28 | 14.5 | 31 | 41 | 41 | |
4C-45 | M45X2 | 35 | 14.5 | 36 | 46 | 50 | |
4C-45D | M45X1.5 | 35 | 14.5 | 36 | 46 | 50 | |
4C-52 | M52X2 | 42 | 16 | 39 | 55 | 60 | |
4D-14 | M14X1.5 | 6 | 11 | 26 | 14 | 17 | 63S |
4D-16 | M16X1.5 | 8 | 13 | 28 | 17 | 19 | |
4D-18 | M18x1.5 | 10 | 12.5 | 29 | 19 | 22 | |
4D-20 | M20x1.5 | 12 | 14.5 | 31 | 22 | 24 | |
4D-22 | M22x1.5 | 14 | 16 | 34 | 24 | 27 | |
4D-24 | M24x1.5 | 16 | 15.5 | 34 | 27 | 30 | 40S |
4D-30 | M30x2 | 20 | 17.5 | 39 | 32 | 36 | |
4D-36 | M36x2 | 25 | 20 | 44 | 38 | 46 | |
4D-42 | M42x2 | 30 | 20.5 | 47 | 46 | 50 | |
4D-52 | M52X2 | 38 | 23 | 54 | 55 | 60 | 31.5S |
Lus Cim Nyob rau hauv rooj plaub yog tias koj xav muab tus adapter ua tiav nrog lub nplhaib thiab txiv ntseej, nws yog qhov tsim nyog rau ntxig tom qab "RN" tom qab peb qhov tsis muaj. piv txwv li 4C-30RN. | |||||||
2. DIN Metric Cap Swivel 9C / D
DKO Tshaj Lij
PART TSIS MUAJ. | THREA | TUBE OD | DIMENSIONS | MPa | ||
F | D | L | L1 | S2 | ||
9C-12 | M12X1.5 | 6 | 15.5 | 17.5 | 14 | 31.5L |
9C-14 | M14X1.5 | 8 | 15.5 | 18 | 17 | |
9C-16 | M16X1.5 | 10 | 16.5 | 18 | 19 | |
9C-18 | M18X1.5 | 12 | 18 | 19.5 | 22 | |
9C-22 | M22X1.5 | 15 | 19.5 | 20 | 27 | |
9C-26 | M26X1.5 | 18 | 20 | 22 | 32 | |
9C-30 | M30X2 | 22 | 21.5 | 22.5 | 36 | 16L |
9C-36 | M36X2 | 28 | 22.5 | 24.5 | 41 | |
9C-45 | M45X2 | 35 | 25 | 29 | 55 | |
9C-52 | M52X2 | 42 | 27 | 31.5 | 60 | |
9D-14 | M14X1.5 | 6 | 16 | 18 | 17 | 63S |
9D-16 | M16X1.5 | 8 | 16.5 | 18.5 | 19 | |
9D-18 | M18X1.5 | 10 | 18 | 20 | 22 | |
9D-20 | M20X1.5 | 12 | 18.5 | 20.5 | 24 | |
9D-22 | M22X1.5 | 14 | 19 | 21.5 | 27 | |
9D-24 | M24X1.5 | 16 | 18.5 | 21.5 | 30 | 40S |
9D-30 | M30X2 | 20 | 22.5 | 25 | 36 | |
9D-36 | M36X2 | 25 | 23.5 | 28.5 | 46 | |
9D-42 | M42X2 | 30 | 25.5 | 32 | 50 | |
9D-52 | M52X2 | 38 | 26.5 | 36 | 60 | 31.5S |
3. DIN Metric Plug Sab Nraud Hex PLEG
4H Rau Cov Hluav Taws Xob Chaw Siv ISO 6149 O-ring sealing
4. ISO Internal Hex Port Plug PLIH
VSTI M-LOS YOG Rau Chaw Nkag Chaw Ua Haujlwm ISO 6149 O-ring sealing
5. Metric Plug Hollow Hex VSTI M / R ED
4MN-WD Txiv neej metric xov ED-foob (rau chaw nres nkoj ISO 9974)
